A cylinder grinding machine is a machine tool used to remove small amounts of material from the outside or inside of cylindrical workpieces. It uses an abrasive grinding wheel to shape surfaces, improve dimensional accuracy, and produce a controlled surface finish. Cylinder grinding machines are used in manufacturing, automotive production, aerospace components, toolmaking, and other industries where round metal parts need consistent geometry.
What a Cylinder Grinding Machine Is

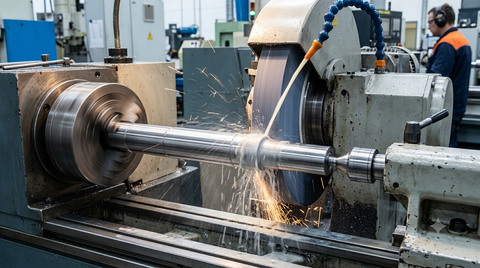

A cylinder grinding machine, often called a cylindrical grinding machine, works by rotating a workpiece while a grinding wheel moves against its surface. Depending on the machine design, grinding can take place on the outside diameter, inside diameter, or selected cylindrical features.
The process is different from ordinary cutting because the abrasive wheel removes material through many small cutting actions. This makes grinding useful when a component needs relatively close dimensional control or a smoother surface after earlier machining operations.
How Cylindrical Grinding Developed
Grinding developed alongside metalworking as manufacturers needed more controlled methods for finishing hardened and accurately shaped parts. Earlier machines depended heavily on manual adjustment, while later designs introduced hydraulic movement, electronic controls, numerical control, and computer numerical control.
Modern cylinder grinding machines can combine controlled wheel movement, automatic dressing, measurement systems, and programmable cycles. These developments help manufacturers repeat established processes while reducing dependence on continuous manual adjustment.
Importance
Why Cylindrical Grinding Matters
Cylindrical grinding is important because many mechanical components depend on round surfaces that must fit, rotate, slide, seal, or support loads correctly. Small variations in diameter, roundness, taper, or surface condition can affect how a component interacts with another part.
Typical applications include:
- Shafts and axles
- Bearings and bearing components
- Hydraulic and pneumatic cylinders
- Bushings and sleeves
- Gears and transmission components
- Precision pins and rollers
- Tooling and machine components
The process also matters for finishing components after heat treatment. Grinding can remove a controlled amount of hardened material and help bring a part toward its specified dimensions.
What Problems Does It Address?
A cylinder grinding machine addresses several common manufacturing challenges. Turning can create a cylindrical surface, but grinding may be used afterward when tighter dimensional control or a different surface condition is required.
Grinding can also help correct limited geometric variations, including taper and out-of-round conditions, when the machine, workholding method, wheel, and process settings are appropriate. The result depends on the workpiece material, machine condition, wheel selection, coolant or lubrication method, and operator or control settings.
Recent Updates
Automation and Digital Control
From 2024 through 2026, the general direction of cylindrical grinding has continued toward automation, numerical control, process monitoring, and integration with digital manufacturing systems. Current machine designs increasingly combine programmable grinding cycles with automatic wheel dressing, in-process measurement, and machine condition monitoring.
Automation can also connect grinding equipment with material handling systems and other production machines. These developments are particularly relevant where manufacturers need repeatable processes for batches of similar cylindrical components.
Measurement and Process Monitoring
Measurement systems are becoming more closely connected with grinding cycles. In-process gauges can monitor selected dimensions while a component is being processed, allowing the control system to adjust or stop a cycle according to defined parameters.
Another continuing development is the use of sensors and data collection to observe vibration, spindle behavior, temperature, and other process conditions. These tools do not replace engineering judgment, but they can provide additional information for process control and equipment maintenance.
Abrasive and Wheel Developments
Grinding wheels continue to use different abrasive types, bonding methods, grain sizes, and structures for different applications. Diamond and cubic boron nitride abrasives are used for particular hard or difficult-to-machine materials, while conventional abrasives remain common for many metalworking tasks.
Indian Standards include specifications related to grinding wheels and abrasive products. BIS records standards covering areas such as wheel mounting, permissible wheel unbalance, and safety requirements for abrasive grinding wheels. Recent standards activity also includes updated safety-related machinery standards.
Laws or Policies
Machinery Safety in India
In India, industrial grinding equipment is affected by occupational safety requirements, machinery safety standards, electrical requirements, and applicable state or central rules. The Occupational Safety, Health and Working Conditions Code, 2020 provides a national framework covering occupational safety and working conditions, while implementation involves rules and notifications. The Ministry of Labour and Employment currently lists the Occupational Safety, Health and Working Conditions Central Rules, 2026 within its labour-code materials.
BIS Standards and Safety Requirements
The Bureau of Indian Standards provides access to Indian Standards covering machine safety and abrasive products. Relevant standards can address topics such as risk assessment, emergency-stop functions, guarding, electrical equipment, safety distances, and grinding-wheel requirements. BIS also provides a search portal where users can look up standards by Indian Standard number or keyword.
For industrial facilities, the exact legal requirements can vary according to the machine, workplace, state rules, industry, and applicable conformity requirements. A specific installation should therefore be assessed against the standards and regulations that apply to that workplace rather than relying on a general article.
Tools and Resources
Common Tools Used With Grinding Machines
Several supporting tools help prepare, operate, and inspect a cylinder grinding machine. These can include:
- Micrometers for checking outside diameter
- Bore gauges for checking internal dimensions
- Dial indicators for alignment and runout checks
- Surface-finish measurement instruments
- Grinding-wheel dressing tools
- Balancing equipment for grinding wheels
- Coolant or lubrication systems
- Digital machine controls and measurement systems
Reference Resources
BIS's Know Your Standard portal can be used to search Indian Standards by keyword or standard number. BIS also publishes information on machine-safety certification and product-specific guidance, including material related to metal-cutting machines. These resources can help readers identify the standards relevant to a particular machine or application.
Basic Comparison Table
| Grinding type | Main surface processed | Typical use |
|---|---|---|
| External cylindrical grinding | Outside diameter | Shafts, pins, rollers |
| Internal cylindrical grinding | Inside diameter | Bores, sleeves, bearing seats |
| Centreless grinding | Outside diameter without centers | Repetitive round components |
| Plunge grinding | A defined external area | Shoulders and selected diameters |
| Traverse grinding | Lengthwise cylindrical surface | Longer cylindrical sections |
FAQs
What is a cylinder grinding machine used for?
A cylinder grinding machine is used to finish cylindrical surfaces on components such as shafts, pins, rollers, sleeves, and bearing-related parts. It can process outside or inside diameters depending on the machine configuration.
How does a cylindrical grinding machine work?
A cylindrical grinding machine normally rotates the workpiece while an abrasive wheel contacts the surface. Controlled movement between the wheel and workpiece removes a small amount of material until the required dimensions and surface condition are reached.
What are the main types of cylinder grinding machines?
Common types include external cylindrical grinders, internal cylindrical grinders, centreless grinders, plunge grinders, and traverse grinders. The suitable type depends on the component geometry, dimensions, material, and required process.
What components are found in a cylinder grinding machine?
Major components can include the grinding wheel and spindle, workholding arrangement, headstock, tailstock where applicable, table or slide system, dressing unit, coolant system, measurement equipment, guards, and control system.
Why is grinding used after machining?
Grinding may be used after turning, milling, or heat treatment when a component requires controlled dimensions, geometry, or surface characteristics. The process can remove a relatively small amount of material with an abrasive wheel.
Conclusion
A cylinder grinding machine is designed for controlled finishing of cylindrical components and can process external or internal surfaces depending on its configuration. Its main elements include the grinding wheel, spindle, workholding system, movement mechanisms, dressing equipment, measurement tools, and safety systems. Current developments emphasize numerical control, automation, measurement, monitoring, and machine safety. In India, applicable workplace rules and Indian Standards should be considered when selecting, installing, operating, or maintaining grinding equipment.
